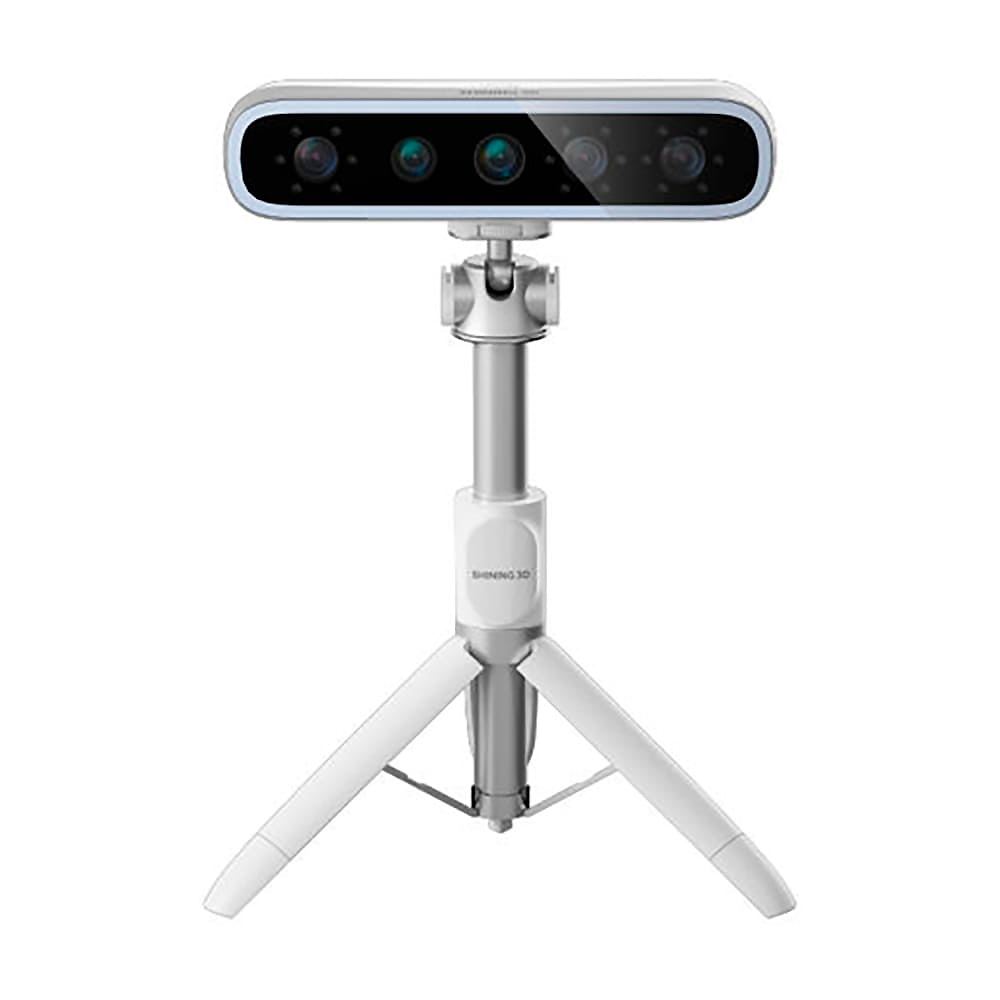

New Dental Face 3D Scanner
In just 10 seconds this highly perceptive scanner can take photos of patients from multiple angles to simultaneously construct a 3D facial data. Thanks to its three data acquistition cameras and one 5.0 MP HD texture camera produce scan accuracy within 50μm.
MetiSmile also captures elevated details of the teeth and the software will align the facial and intraoral scans which displays the patients’ facial and oral information in a comprehensive way.

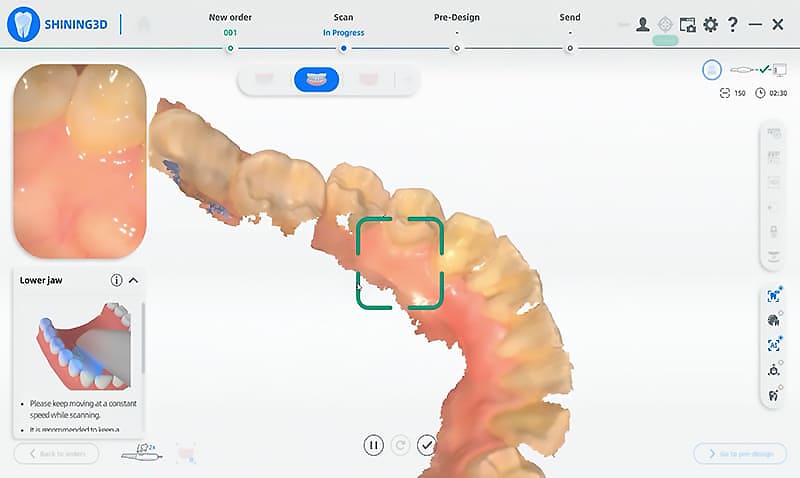

Use Intraoral scanner to capture the intraoral data.
Use MetiSmile to capture the facial data.
Import the intraoral data to MetiSmile software for auto alignment.
Fast Scan Speed
In just 10 seconds this highly perceptive scanner can take photos of patients from multiple angles to simultaneously construct a 3D facial data.

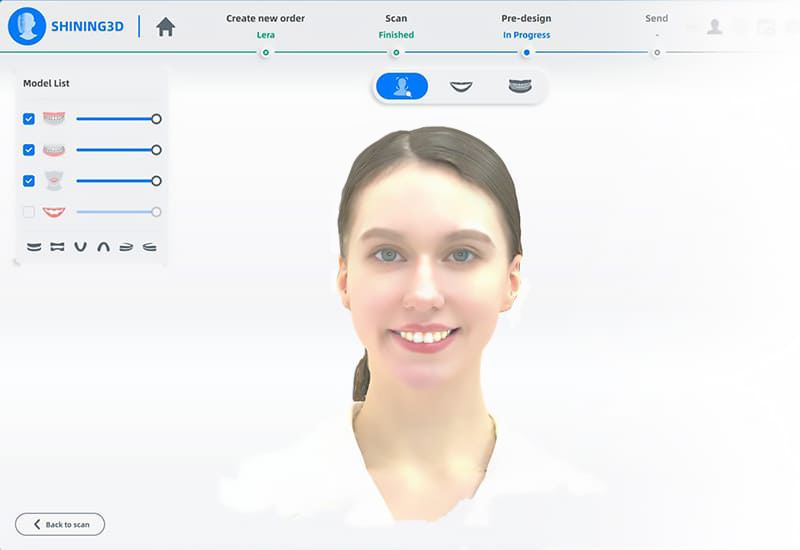

The exceptional texture camera of the MetiSmile can accurately record and display facial color that appears realistic to the patient. MetiSmile also captures elevated details of the teeth.

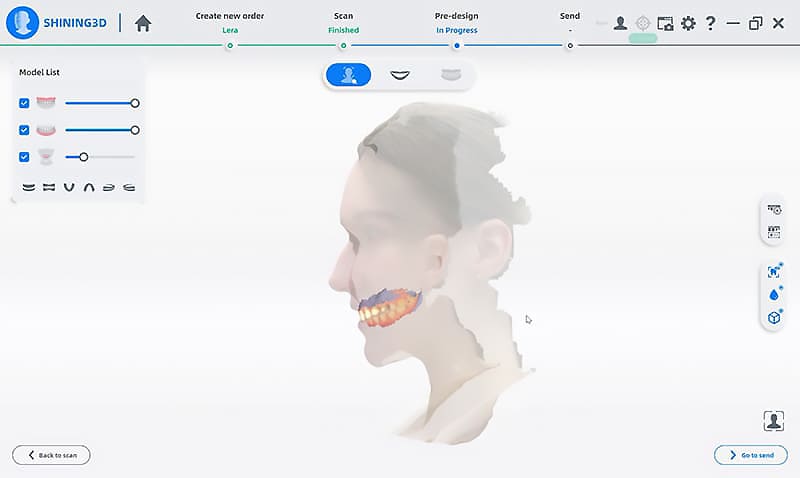

Auto Alignment Between Facial Scan Data and Intraoral Scan Data
Data Alignment – Digital Smile Design
Use intraoral scanner to capture the intraoral data
Use MetiSmile to capture the facial data

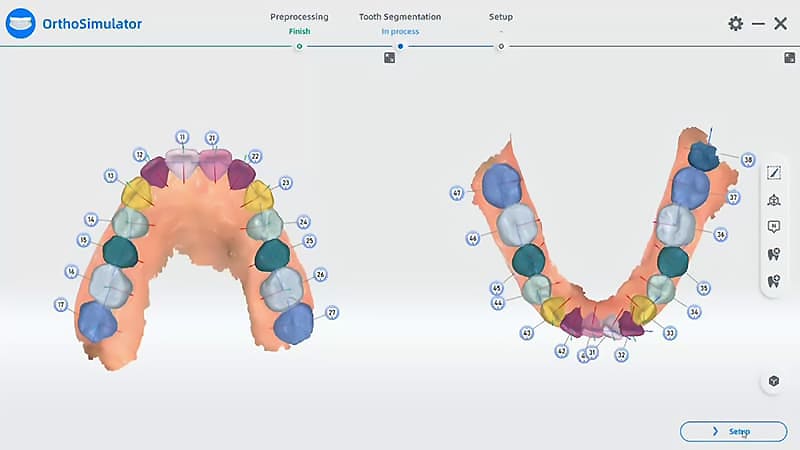

Some of the features of the ortho simulation module include automatic lip extraction and one-click tooth segmentation, etc. The intelligent before and after orthodontic treatment display is enhanced by the integration of the facial scan information.

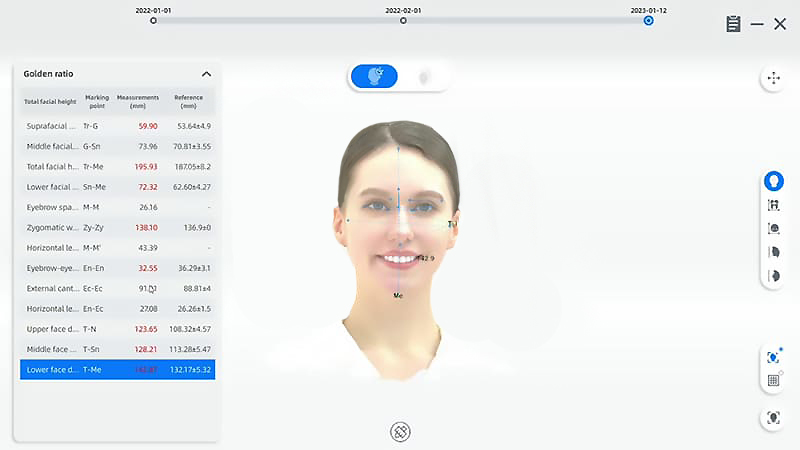

Facial Features Measurement and Comparison
The intuitive software is capable of recognizing 3D facial features. It can measure the distance of facial data, and compare facial changes before and after treatment. These software tools help dentists diagnose and evaluate treatment more effectively.

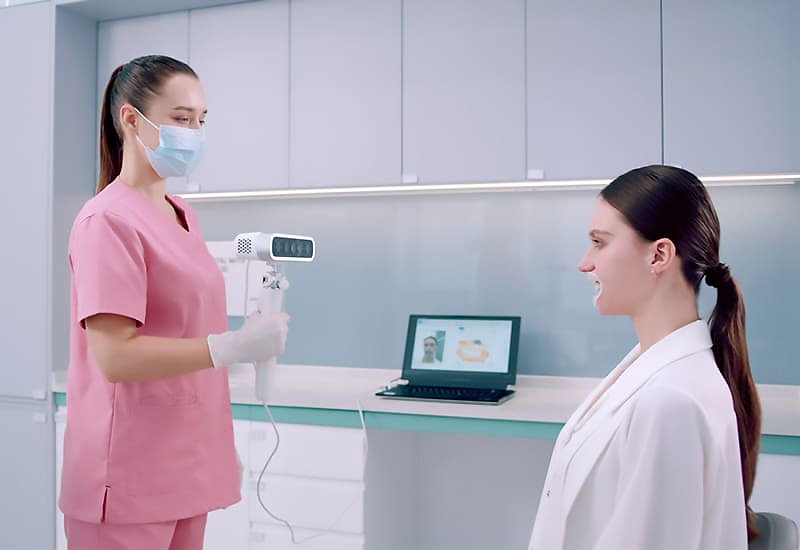

Mandibular Trajectory Tracking
Using mandibular trajectory tracking, the dentist can acquire dynamic occlusion data. This module includes left and right lateral detection, centric, and open occlusion. It delivers detailed occlusion information for accurate diagnosis, design, and treatment.

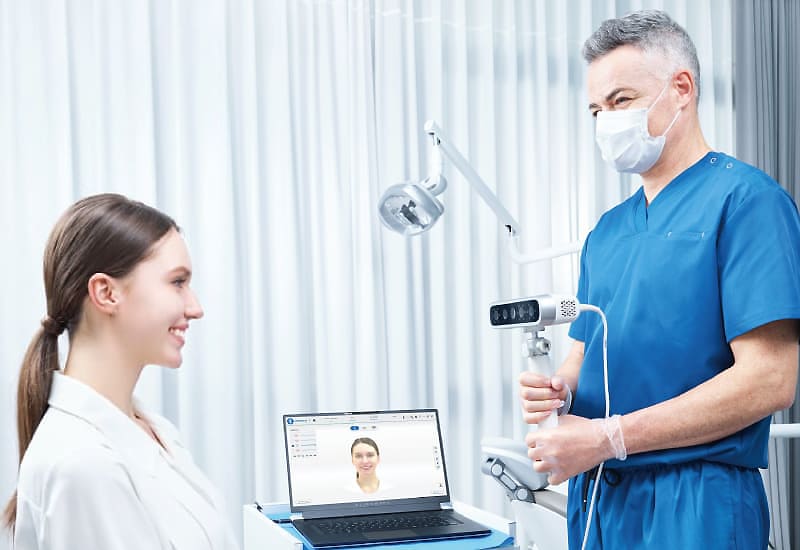

Good User Experience
- Handheld mode & Fixed mode.
- Eye-friendly flashless scan thanks to infrared technology.
- Automatic brightness adjustment ensures outstanding face texture.
- Guided operation throughout the scan workflow.
- Open system to export STL, OBJ and PLY.
- Elegant and compact, only 800 grams.
*Optional function (Upcoming)
Technical Specifications MetiSmil
|Resolution||Data Acquisition Camera: 1.3 Mega Pixel|
HD Texture Camera: 5.0 Mega Pixel
|Field of View||With working distance 500mm, the FOV is 210*270mm|
|Output Format||PLY, OBJ, STL|
|White LED color temperature||5500K|
|Power Supply||Input: AC100-220V~, 50/60HZ, 1.5A|
Output: DC12V, 7.0V
Recommended PC Configuration MetiSmile
|CPU||Intel Core i7-8700 or higher|
|Memory||16GB is the minimum, 32GB is highly recommended.|
|Hard Disk Drive||256GB SSD or above|
|Display Resolution||1920*1080, 60Hz or higher|
|Graphic Card (GPU)||NVIDIA RTX 2060 6GB or higher|
|Operating System||Microsoft Windows 10（64-bit）or later versions of Windows operating system|
